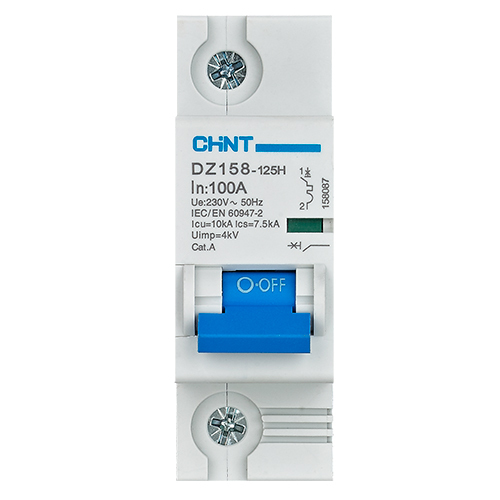

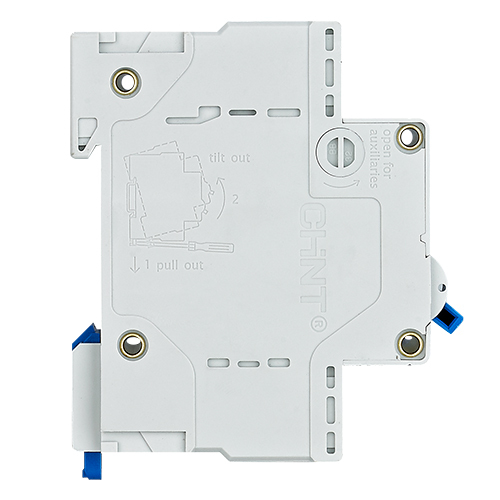

DZ158-125H MCB

Get a Price/Quote

DZ158-125H MCB Specification

Mechanical Life
Up to 20,000 operations

Rated Short Circuit Breaking Current
10kA

Phase
Single Phase/Three Phase

Rated Short Circuit Making Current
12.5kA

Breaking Capacity
10kA

Product Type
Miniature Circuit Breaker (MCB)

Installation Options
DIN Rail Mounting

Function
Overload and Short Circuit Protection

Poles Number
1P, 2P, 3P, 4P

Rated Voltage
230/400V AC

Rated Current
63A, 80A, 100A, 125A

Rated Frequency
50/60 Hz

Curves
C, D

Temperature Protection
-5C to +40C

Weight
Approx. 0.65kg

Color
White/Grey

Humidity Resistance
95% RH

Terminal Capacity
35mm

Electrical Life
8,000 operations

Operating Temperature
-5C to +40C

Housing Material
Flame Retardant Plastic

Mounting Orientation
Vertical or Horizontal

Reference Model
DZ158-125H

Trip Type
Thermal-Magnetic

About DZ158-125H MCB

Explore the acclaimed DZ158-125H MCB manufactured and supplied in India, designed to offer superlative protection with its thermal-magnetic trip type for overload and short circuit events. Capitalise on its phenomenal electrical life of 8,000 operations, reinforced by up to 20,000 mechanical operations, ensuring reliable long-term performance. This laureate device boasts a flame-retardant housing, versatile vertical/horizontal mounting, and an impressive terminal capacity of 35mm. Available in 1P to 4P with rated currents of 63A, 80A, 100A, and 125A, it operates efficiently across single or three-phase systems, delivering robust security with a 10kA breaking capacity.

DZ158-125H MCB: Application & Specific Usage

The DZ158-125H MCB is seamlessly used for protecting residential, commercial, and industrial electrical circuits against overload and short circuits. Facilitated by easy DIN rail mounting, it adapts to vertical or horizontal orientations while accommodating a broad range of current ratings. Specifically suited for single-phase and three-phase systems within operating temperatures of -5C to +40C, this MCB capitalises on its flame-retardant housing and high humidity resistance, making it the preferred choice for reliable electrical safety.

DZ158-125H MCB Sample Policy & Packaging

We offer DZ158-125H MCB samples for initial assessments before bulk orders. Each unit is securely packaged to ensure damage-free delivery across the main domestic markets of India. Express shipping options are available for urgent requirements, allowing rapid access and installation. Our delivery policy caters to both manufacturers and traders, guaranteeing a swift process and customer satisfaction. For more details on sample availability and packaging specifications, please enquire directly for support.

FAQs of DZ158-125H MCB:

Q: How is the DZ158-125H MCB installed?

A: The DZ158-125H MCB is installed using DIN rail mounting, with flexibility for either vertical or horizontal orientation, ensuring easy integration into various electrical panels.

Q: What are the main benefits of using the DZ158-125H MCB?

A: This MCB provides phenomenal circuit protection against overload and short circuits, boasts a superlative operational life, and features flame-retardant housing with high humidity resistance, making it highly reliable in diverse environments.

Q: Where can the DZ158-125H MCB be used?

A: It is suitable for residential, commercial, and industrial settings, protecting both single-phase and three-phase electrical circuits within the operating temperature and humidity specifications.

Q: When should the DZ158-125H MCB be replaced?

A: Replacement is recommended if the MCB shows signs of mechanical wear, exceeds its mechanical life of 20,000 operations, or if performance during fault conditions becomes erratic.

Q: What is the process for obtaining DZ158-125H MCB samples?

A: You can request samples by contacting the supplier or manufacturer. The sample policy offers catered assessment opportunities with express shipping and secure packaging to your location within India.
